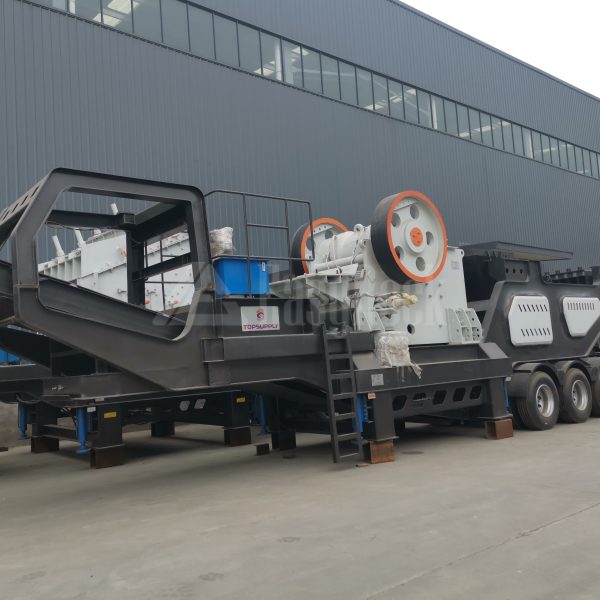

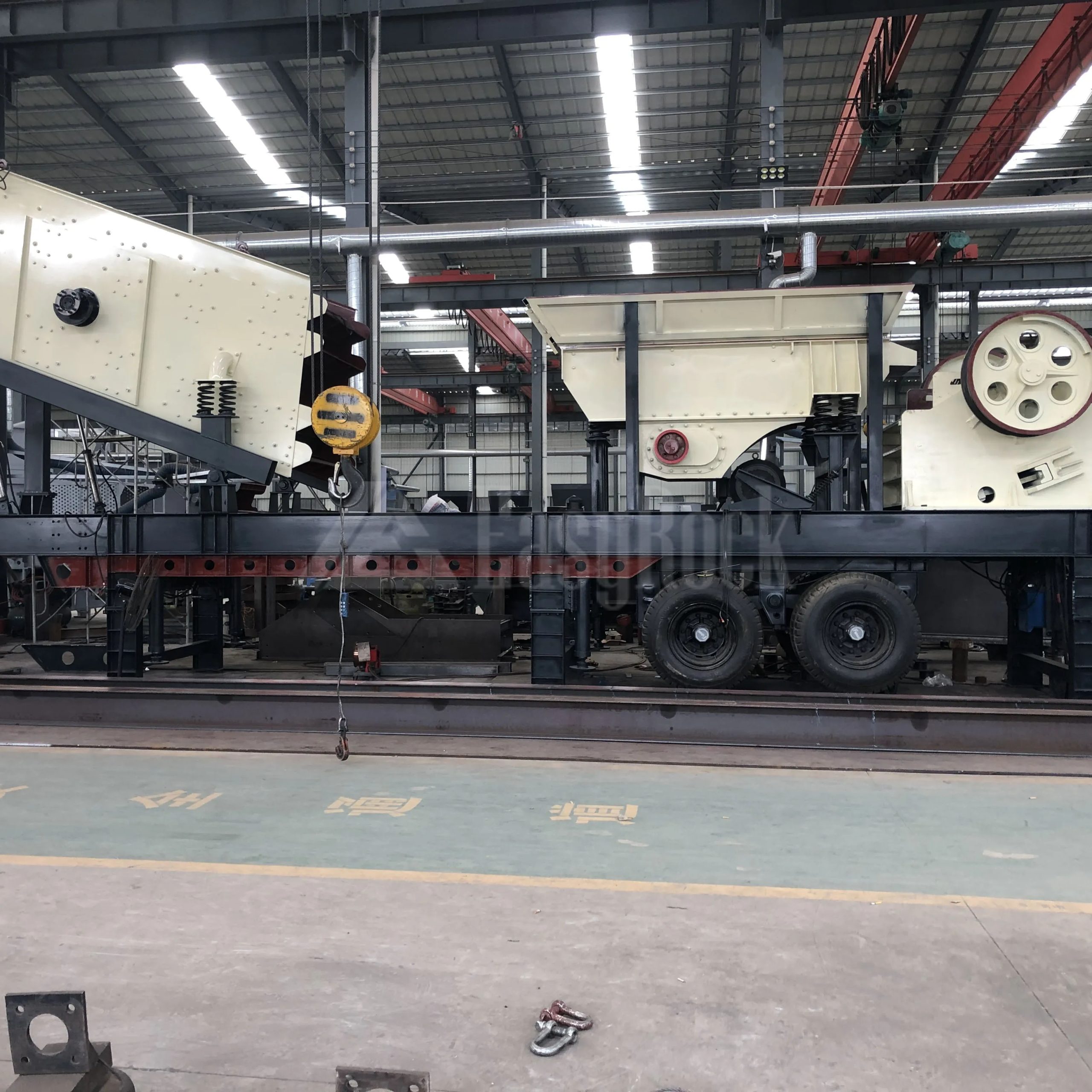

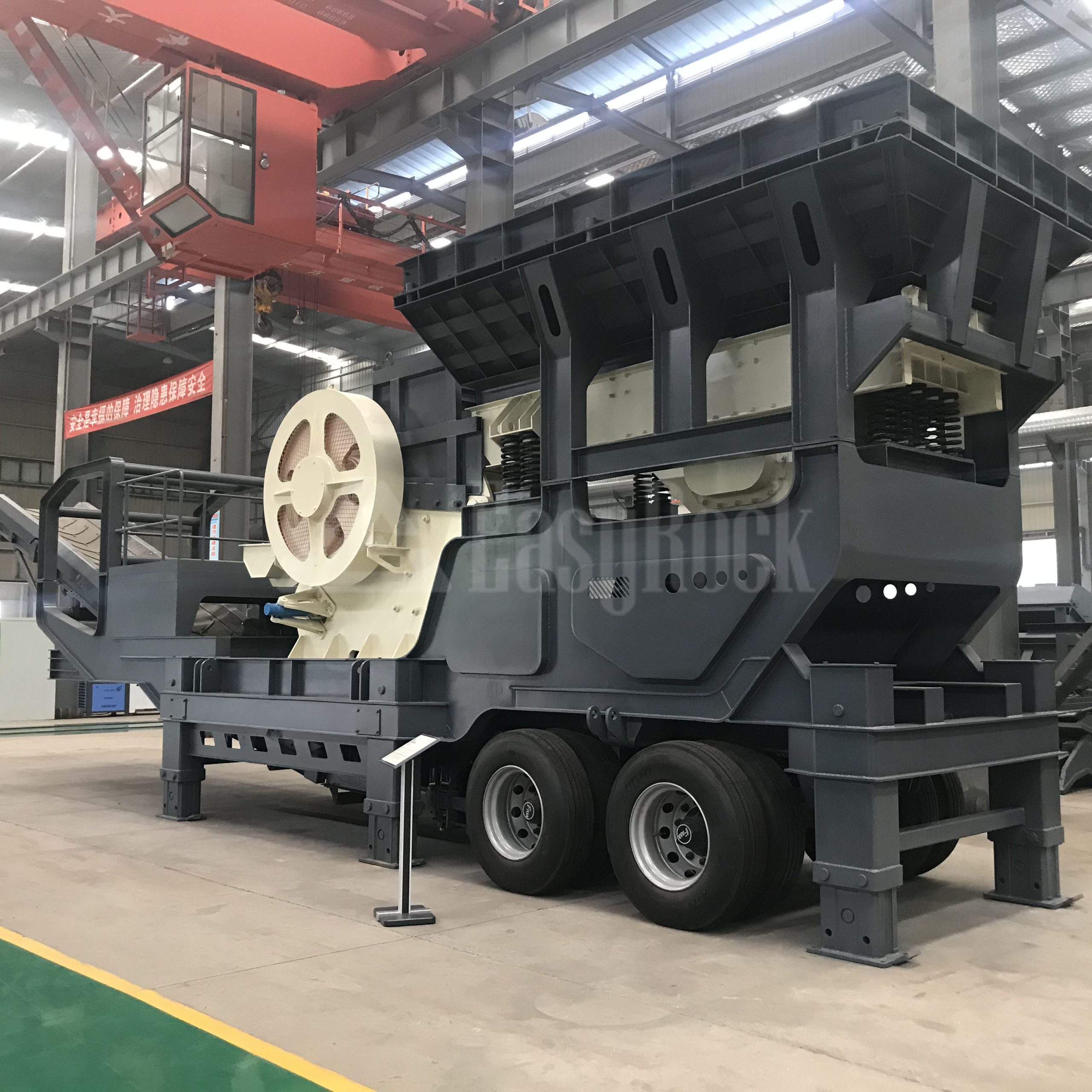

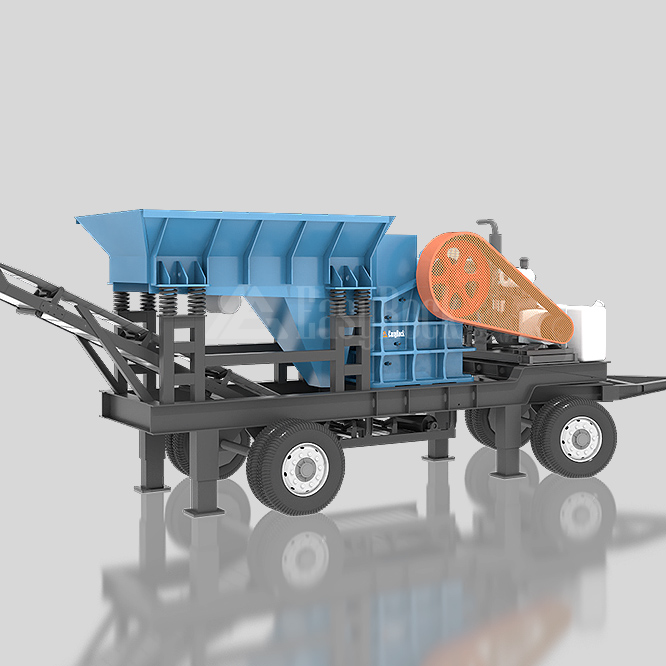

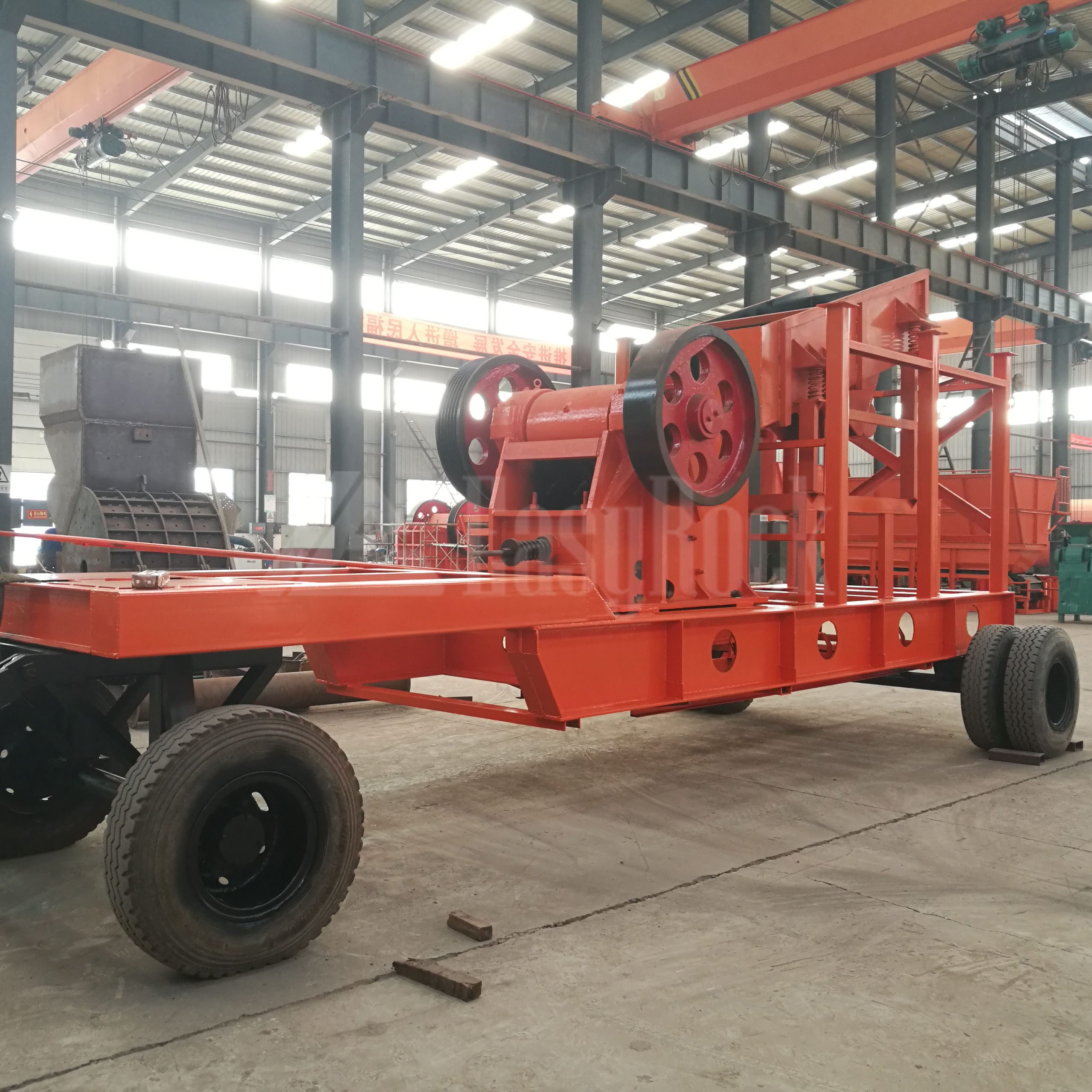

Mobile tire jaw crusher application range：
Metal and non-metallic minerals, cement, sand and gravel, metallurgy, construction waste treatment and other industries
Mobile tire jaw crusher is suitable for materials:
Various metal and non-metal ores, rocks, etc.
Mobile tire jaw crusher product advantages:
- Customized host, simple operation and convenient maintenance.
- With strong universal interchangeability, it can be quickly assembled into the required mobile station model, reducing the production cycle and meeting customers’ needs for fast delivery.
- Good lubrication effect and long maintenance cycle.
- The lubricating oil only needs to be replaced once every 8 months, saving lubricating oil and labor costs.
- The new jaw crusher can quickly adjust the discharge opening to meet the product requirements of different crushing applications.
- Installation without foundation saves on-site installation process; adjustable fixed leg design effectively realizes installation without foundation.
- Easy and flexible to move, without external belt conveyor.
- It can be quickly installed and debugged, and can be put into production 24 hours a day during transfer. The mobile station is convenient and flexible.
- Intelligent control, integrated intelligent automatic control system, operation, maintenance and adjustment are more convenient and accurate.
- Strong adaptability and flexible configuration
parameters:
| model | 150×250 | 200×300 | 200×350 | 250×400 | 400×600 | 500×750 | 600×900 | 750×1060 | 900×1200 |
|---|---|---|---|---|---|---|---|---|---|
| Processing capacity (t/h) | 1-3 | 2-6 | 3-10 | 5-20 | 20-65 | 40-110 | 50-160 | 110-320 | 220-380 |
| Power (kw) | 5.5+1.1+1.5 | 7.5+1.1+1.5 | 11+1.5+2 | 15+1.5+3 | 30+5.5+5.5 | 55+7.5+5.5 | 75+11+5.5 | 110+15+7.5 | 132+15+11 |
| Vibrating feeder | 500×1000 | GZD-500×1000 | GZD-600×1500 | GZD-600×1500 | GZD-850×3000 | GZD-900×3000 | GZD-960×3800 | GZD-11×4200 | GZD-1100×4200 |
| Jaw Breaker | 150×250 | 200×300 | 200×350 | 250×400 | 400×600 | 500×750 | 600×900 | 750×1060 | 900×1200 |
| Outfeed conveyor | 300×4500 | 300×4500 | 400×4500 | 500×6000 | 500×8000 | 600×8000 | 800×10000 | 1000×10000 | 1200×12000 |
